| Battery Weight (each) | 18 AH: 13 kg (29 lbs.) |
|---|---|
| Maximum User Weight | 136 kg (21 st 6 lbs) |
| Max Speed | 4 mph (6 km/h) |
| Ground Clearance | 3.8 cm (1.5") |
| Length | 104.1 cm (41") |
| Width | 52.1cm (20.5") |
| Turning Radius | 116.2 cm (50.5") |
| Standard Controls | LED Display |
| Heaviest Piece (when disassembled) | 16.6 kg (36.6 lbs.) front section |
| Total Weight (without batteries) | 39.6 kg (87.4 lbs) |
| Suspension | Front and rear independent CTS Suspension |
| Battery Requirements | Two 12-volt, deep cycle (standard) Size: 2 x 18 AH |
| Seating | Foldable, compact, vinyl-covered molded plastic |
| Tyres | Front: 5 cm x 17.8 cm (2” x 7”) solid Rear: 6.35 cm x 20.3 cm (2.5” x 8”) solid |

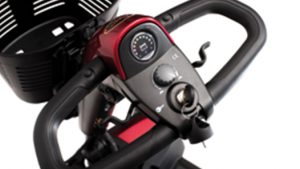

Delta Tiller Control System

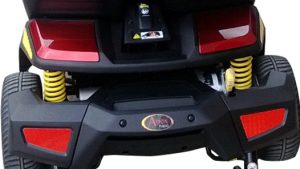

Front and Rear Suspension

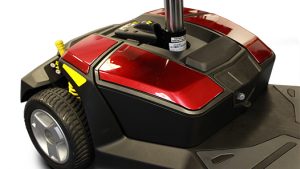

Optional 12Ah Batteries

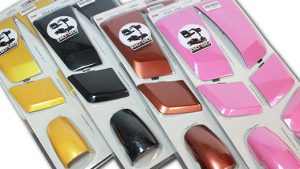

Optional Colour Shrouds
Note
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
